"SUNNY DAY U"


Make a Vertical Sundial - Graphical Method

Vertical Sundial: any dial in which the dial plate is vertical.


The sundial you will be making is a vertical sundial that faces directly south.

Figure 1 shows the relationship between a vertical sundial and the equatorial sundial that is used to create it.  Notice that the two sundials have a common style or shadow casting edge that points to the celestial pole. The style is at an angle equal to the co-latitude, or 90-latitude, relative to the face of the vertical sundial and it is perpendicular to the face of the equatorial sundial. For this to be, the equatorial sundial is tilted at an angle equal to the latitude relative to the face of the vertical sundial.

This sundial is designed for the Northern Hemisphere and the style must point to the North Celestial Pole (True North) or Polaris. To design a sundial for the Southern Hemisphere you need to reverse the numbering of the hours. Instead of the hour numbers going from 6 a.m. to 6 p.m. in the counterclockwise direction they will go from 6 a.m. to 6 p.m. in the clockwise direction. Also the style must point to the South Celestial Pole (True South).

This sundial will tell solar time but not clock time. You must learn about longitude correction and the Equation of Time to correct your sundial reading so that it will give you clock time.

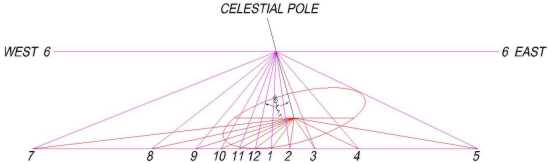

Figure 1: Vertical Sundial

Figure 1: Vertical Sundial (CAD)

It would be difficult to project the hour lines of the equatorial sundial shown in Figure 1 on to a vertical plane to create the vertical sundial. A graphical method is available to do this on a flat surface, your piece of paper. Follow these instructions and in no time you will have your very own vertical sundial and it will be designed for where you live.

What do you need to know? All you need to know is the latitude of where you live. Now let's make a vertical sundial.

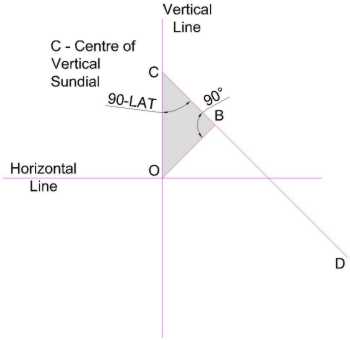

Step 1

Step 1

  • Draw a horizontal line.

  • Draw a vertical line that passes through the horizontal line at O.

  • Select a point C on the vertical line. This point will be the centre of your vertical sundial and eventually all the hour lines will radiate from it.

  • Draw the line CD at an angle equal to the co-latitude (90-LAT) from OC.

  • Draw the line OB from O and perpendicular to line CD. The line OB is the radius of the equatorial sundial you will be drawing next.

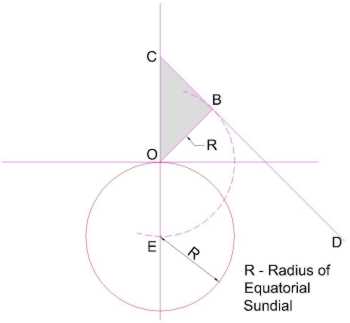

Step 2

Step 2

  • Place your compass point at O and draw an arc from B until it crosses the vertical line at E. This is the centre of your equatorial sundial.

  • Place your compass point at E and draw a circle starting at O. Notice that OE=OB=R. You have now drawn the face of your equatorial sundial.

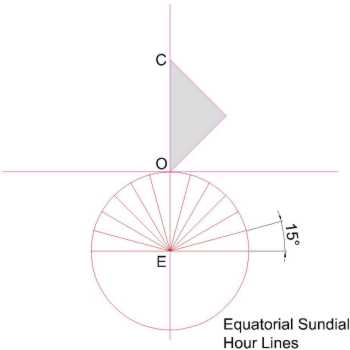

Step 3

Step 3

  • Starting at OE draw lines spaced at 15 in both directions until they are horizontal. The hour lines on an equatorial sundial are spaced at 15 intervals. You now have the hour lines for the full hours between 6 a.m. and 6 p.m.

  • If you want smaller time intervals add more lines. Remember that 15=60 minutes so 7.5=30 minutes, 1=4 minutes. You can figure out the rest.

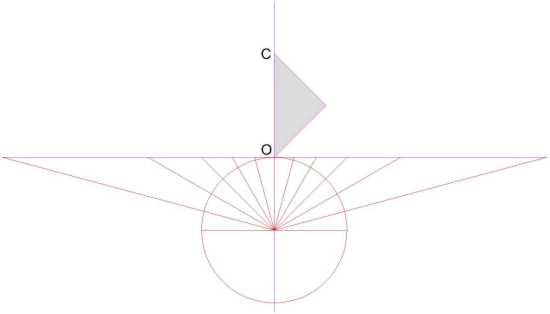

Step 4

Step 4

  • Extend all the lines to the horizontal line.

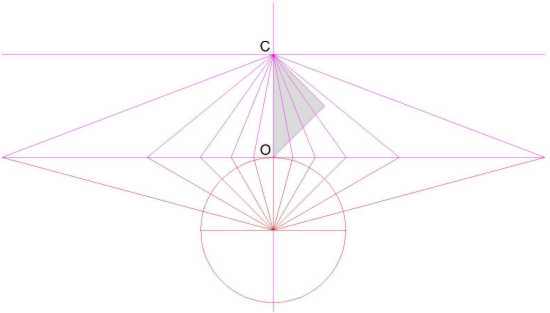

Step 5

Step 5

  • From C, the centre of the vertical sundial, draw a line to each of the points on the horizontal line. You have now transferred the hour lines form the equatorial sundial to the vertical sundial.

  • As the hour lines approach 6 a.m. and 6 p.m. they move further away and if you want to mark off smaller time intervals between 6 and 7 a.m. and 5 and 6 p.m. you will probably run out of paper space......table space...........room space.  Do you know how you can get these hour lines? Think about it.

Step 6

Step 6

  • Remove all the extra lines from your drawing or trace the hour lines on to a clean piece of paper.

  • Glue the paper on to some cardboard.

  • You can make your sndial face any shape you want and decorate it too. Cut your sundial out with scissors.

  • The gnomon should be made out of cardboard. The angle at C must be equal to your co-latitude. The gnomon is attached to your sundial so that point C on the gnomon is at point C on the sundial's face and the base of the gnomon is on the noon line. Try to make it stand as straight as possible. Try different sized gnomons to see what happens to the shadow.

A vertical direct south sundial in the Northern Hemisphere and a vertical direct north sundial in the Southern Hemisphere can tell the time between 6 a.m. and 6 p.m.. Check out The Sundial Primer page "Sun Charts" for some interesting information.

Congratulations! Your sundial is now ready to use. All you need to do is find a sunny spot and find the direction of true north, that is the celestial pole. Make sure that your sundial is vertical and that the gnomon is pointing to the celestial pole. To find true north please go to "Finding True North" at The Sundial Primer.

Happy Dialling!
